neuray API Programmer's Manual

mi::neuraylib::IIrradiance_probes Class Reference

[Miscellaneous]

Description

Irradiance probes are used to render the irradiance at certain locations in the scene. Rendering of irradiance probes is different from the usual rendering of buffers, like for example "result" or "normal". In particular, the orientation of the camera is irrelevant. Instead, locations of so-called irradiance probes are explicitly specified by this scene element which is attached to the camera (see mi::neuraylib::ICamera::set_irradiance_probes()).

To actually render the irradiance using these irradiance probes the render target needs to contain a canvas named "irradiance_probe" with pixel type "Rgb_fp". The product of the canvas resolution in x and y direction needs to match the number of irradiance probes. The irradiance probes are mapped to the canvas pixels in row-major order.

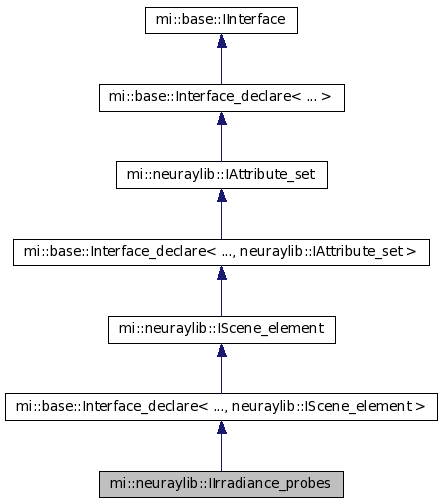

mi::base::Interface_declare\< ..., neuraylib::IScene_element \>Mixin class template for deriving new interface declarations. Common base interface for all scene elements.Common base interface for all scene elements. mi::base::Interface_declare\< ..., neuraylib::IAttribute_set \>Mixin class template for deriving new interface declarations. The attribute set comprises all attributes attached to a database element.The attribute set comprises all attributes attached to a database element. mi::base::Interface_declare\< ... \>Mixin class template for deriving new interface declarations. The basic extensible interface.The basic extensible interface.

Public Member Functions

virtual Size get_length() const =0
Returns the number of probes.
virtual Sint32 get_probe( Size index, Float32_3_struct& position, Float32_3_struct& normal) const =0
Returns the probe data for the probe at index. More...
virtual void set_length( Size size) =0
Sets the number of probes,. More...
virtual Sint32 set_probe( Size index, const Float32_3_struct& position, const Float32_3_struct& normal) =0
Sets the probe data for the probe at index. More...

Member Functions

virtual Size mi::​neuraylib::​IIrradiance_probes::get_length() const [pure virtual]

Returns the number of probes.

virtual Sint32 mi::​neuraylib::​IIrradiance_probes::get_probe( Size index, Float32_3_struct& position, Float32_3_struct& normal) const [pure virtual]

Returns the probe data for the probe at index.

Parameters

index
The probe to be queried.
position
The position of the probe.
normal
The normal of the probe.

Returns

  • 0: Success.
  • -1: index is out of bounds.
virtual void mi::​neuraylib::​IIrradiance_probes::set_length( Size size) [pure virtual]

Sets the number of probes,. Newly created elements are default-initialized.

virtual Sint32 mi::​neuraylib::​IIrradiance_probes::set_probe( Size index, const Float32_3_struct& position, const Float32_3_struct& normal) [pure virtual]

Sets the probe data for the probe at index.

Parameters

index
The probe to be modified.
position
The new position of the probe.
normal
The new normal of the probe.

Returns

  • 0: Success.
  • -1: index is out of bounds.
